128
maximum controlled axes
WMX3 · Real-time motion control software
Software-Defined Motion Control
ONE PC · REAL-TIME SOFTWARE · COMPLETE MACHINE CONTROL
Build faster, more flexible automation systems with high-performance motion, fieldbus and I/O control running on a standard industrial PC.
256
parallel real-time channels
0.125ms
minimum communication cycle
1450B × 2
input and output capacity
Technology
Windows flexibility.Deterministic real-time control.
WMX3 assigns dedicated CPU and memory resources to the RTX real-time subsystem, isolating machine control from ordinary Windows workloads.
STANDARD INDUSTRIAL PC
WINDOWS Windows applications · HMI · data · engineering
Shared memory and APIs
RTX REAL-TIME SUBSYSTEM WMX3 motion engine · EtherCAT master · real-time algorithms
EtherCAT · CC-Link IE TSN · RTEX · MECHATROLINK
SERVOS · ROBOTS · I/O · AUTOMATION EQUIPMENT
- 01
No dedicated motion board
Use standard PC hardware and fully exploit modern multi-core CPU performance.
- 02
Open development
Build machine applications in Microsoft Visual Studio with C/C++ or C# APIs and ready-to-use examples.
- 03
Integrated simulation
Develop and test control programs without connecting the physical machine.
Products
A complete software motion-control platform
From the real-time control engine to industrial PCs and EtherCAT I/O, Softwin supplies the core building blocks for dependable automation.
01
CONTROL SOFTWARE
WMX3

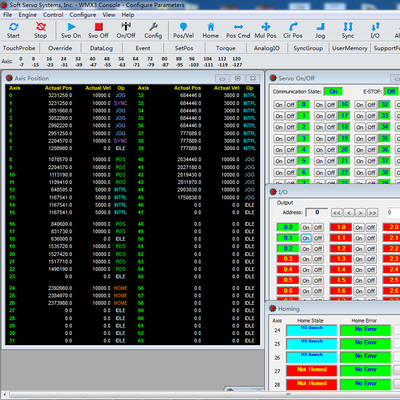

A software motion-control system combining motion, fieldbus, I/O, tools and simulation in one PC-based platform.
- Up to 128 axes
- Basic · Professional · Premium
- C/C++ · C# · real-time SDK
02
CONTROL HARDWARE

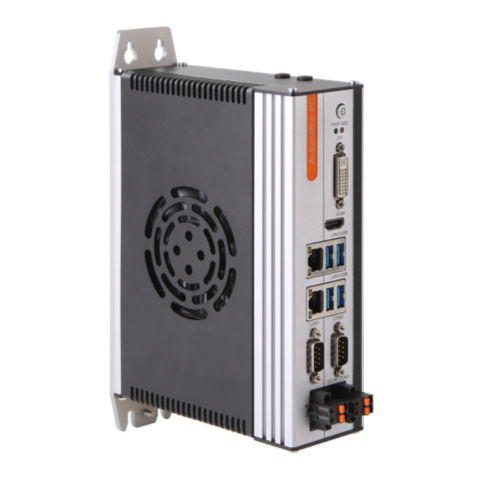

Industrial PCs
Validated industrial computers sized for the real-time cycle, axis count and machine environment of each application.
- Compact and expandable options
- Standard Ethernet interfaces
- Configuration and compatibility support
03
ETHERCAT I/O
Modular & custom I/O
Slice, integrated and PCB-mount EtherCAT I/O options for fast data acquisition, simpler wiring and production-ready machines.
- Digital and analogue modules
- DIN-rail and PCB-mount formats
- Custom signal-distribution boards
Applications
Proven where motionmust stay precise

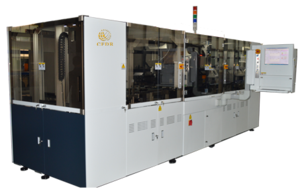

WMX3 has been applied across semiconductor and 3C equipment, high-speed dispensing, SMT, solar-wafer production and display assembly.

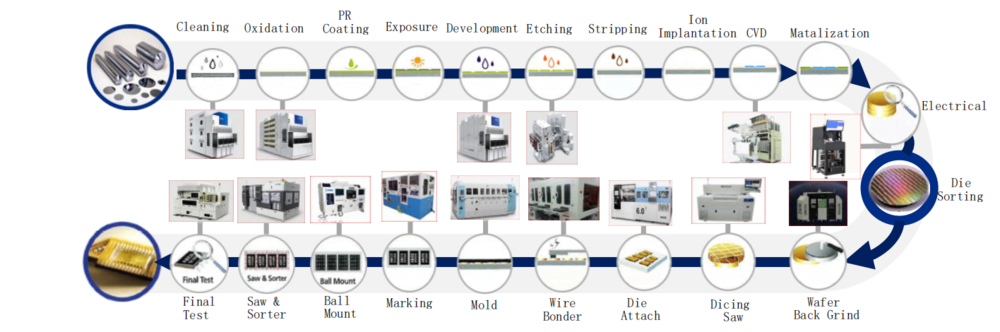

01 Semiconductor equipment
Wafer cleaning, coating, etching, deposition, inspection, grinding, die attach and wire bonding.

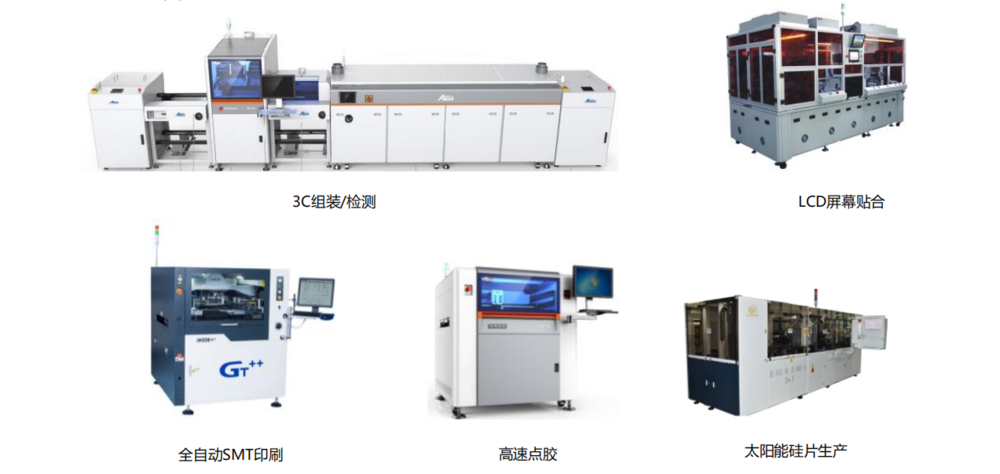

02 3C electronics
Assembly and inspection equipment for phones, panels, LEDs and other precision electronics.
03 High-speed dispensing
Coordinated multi-axis paths for fast, repeatable dispensing and coating processes.
04 Automatic SMT printing
Integrated motion and I/O for compact, high-throughput production equipment.
05 Solar-wafer production
Flexible control for multi-stage wafer handling and process equipment.
06 Display lamination
Precision positioning and synchronized motion for LED and display-panel assembly.
Engineering Support
From first installto production release
An evaluation version, technical support and example programs help your team validate WMX3 on the real machine before deployment.
- 01
Initial deployment
Guidance from product installation through the first running project.
- 02
PC selection
Configuration and performance testing for the target cycle and axis count.
- 03
Slave connection
Support for servo, I/O and other fieldbus device setup.
- 04
Application development
API selection, sample code and real-time algorithm guidance.
- 05
Version upgrades
A clear path to current software releases and capabilities.
Company
Software changesthe future of control
Shenzhen Softwin Technologies develops software motion-control technology for intelligent manufacturing and advanced automation.
Software motion control originated at MIT in 1998. It replaces specialised controller hardware with general-purpose PCs and advanced real-time software, enabling faster iteration and new machine capabilities.
Softwin works with equipment manufacturers to combine control technology with their process knowledge, from standard APIs to customer-developed real-time algorithms and intellectual property.
Engineering ecosystem
- China · Softwin
- United States · Soft Servo Systems
- Japan · Soft Servo Systems
- Korea · Soft Motions & Robotics
Evaluate WMX3
Test it on your machine
Request the WMX3 evaluation version and talk directly with an application engineer about your motion architecture.
